Fred Briggs - Octave Ringmod Fuzzer

Postby briggs » Sun Feb 05, 2012 9:27 am

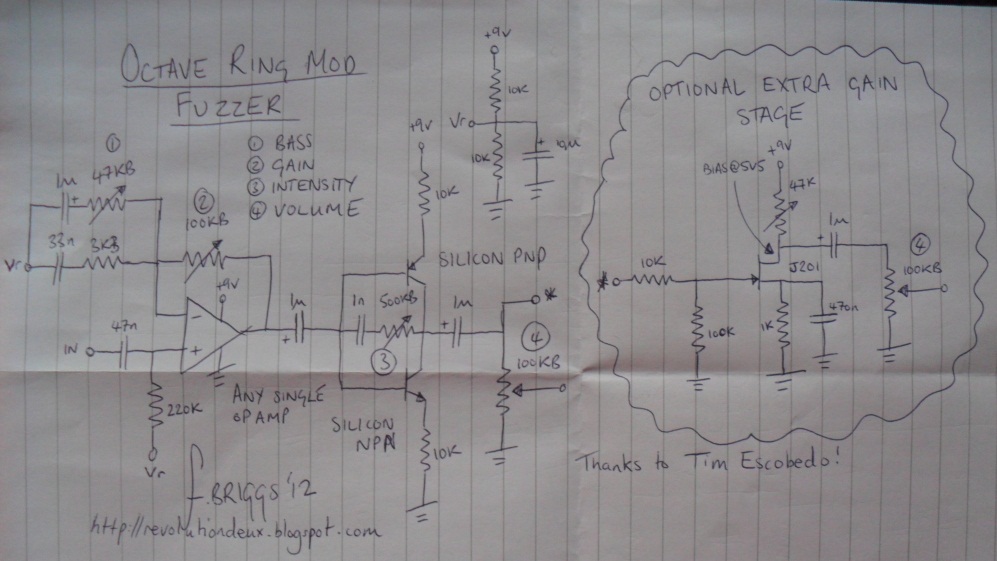

Here's an interesting one for you guys to play with. If you're into fuzz/octave fuzz you'll love this. At low gain it gives a sweet overdrive, as you push it harder it gets nasty. It's based around Tim Escobedo's implementation of the "non selective frequency tripler" circuit snippet (That dual transistor set up). It sounds like this: http://video.google.com/videoplay?docid=-1428391728523134427

With the jfet gain stage it can do all the sounds from the second half of the clip :clown
